国际黑客大会Defcon传统之一：开锁！因为黑客认为锁也是一种安全挑战。我们在黑客题材电影、电视剧中也常常看到：男主女主利用高超的黑客技能侵入目标公司的 *** ，甚至利用社会工程学突破门禁防护潜入对方办公地点进行物理攻击，如入无人之境。（神盾局、黑客军团、Who am i 貌似都有类似情节）

　　

　　北上广不相信眼泪 16集

　　在这一背景下，我们不经思考：门禁系统作为企业物理之一道屏障，这些硬件基础设施安全是否一直都被忽视？

　　0×01 准备工作

　　

　　Linux、Windows环境搭建可参考：RFID Hacking②：PM3入门指南 一文。

　　

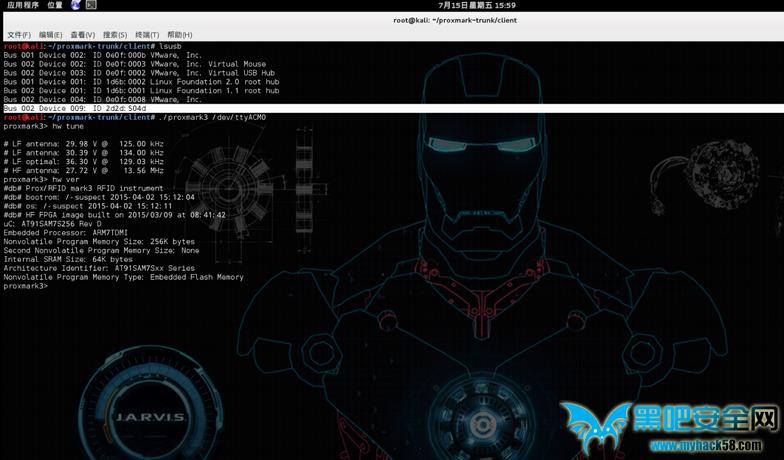

　　1.1 进入PM3工作终端

　　 /dev/ttyACM0

　　1.2 测试天线

　　proxmark3> hw tune # LF antenna: 29.98 V @ 125.00 kHz # LF antenna: 30.39 V @ 134.00 kHz # LF optimal: 36.30 V @ 129.03 kHz # HF antenna: 27.90 V @ 13.56 MHz proxmark3>

　　1.3 设备固件

　　proxmark3> hw ver#db# Prox/RFID mark3 RFID instrument #db# bootrom: /-suspect 2015-04-02 15:12:04 #db# os: /-suspect 2015-04-02 15:12:11 #db# HF FPGA image built on 2015/03/09 at 08:41:42

　　0×02 爆破&枚举秘钥

　　2.1 读取卡片

　　proxmark3> hf 14a readerATQA : 04 00 UID : 2c f0 55 0b SAK : 08 [2] TYPE : NXP MIFARE CLASSIC 1k | Plus 2k SL1 proprietary non iso14443a-4 card found, RATS not supported

　　2.2 执行NESTED攻击，枚举&爆破key:

　　proxmark3> hf mf chk *1 ? tNo key specified,try default keys chk default key[0] ffffffffffff chk default key[1] 000000000000 chk default key[2] a0a1a2a3a4a5 chk default key[3] b0b1b2b3b4b5 chk default key[4] aabbccddeeff chk default key[5] 4d3a99c351dd chk default key[6] 1a982c7e459a chk default key[7] d3f7d3f7d3f7 chk default key[8] 714c5c886e97 chk default key[9] 587ee5f9350f chk default key[10] a0478cc39091 chk default key[11] 533cb6c723f6 chk default key[12] 8fd0a4f256e9 --SectorsCnt:0 block no:0x03 key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:1 block no:0x07 key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:2 block no:0x0b key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:3 block no:0x0f key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:4 block no:0x13 key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:5 block no:0x17 key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:6 block no:0x1b key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:7 block no:0x1f key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:8 block no:0x23 key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:9 block no:0x27 key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:10 block no:0x2b key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:11 block no:0x2f key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:12 block no:0x33 key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:13 block no:0x37 key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:14 block no:0x3b key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:15 block no:0x3f key type:A key count:13 Found valid key:[ffffffffffff] --SectorsCnt:0 block no:0x03 key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:1 block no:0x07 key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:2 block no:0x0b key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:3 block no:0x0f key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:4 block no:0x13 key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:5 block no:0x17 key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:6 block no:0x1b key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:7 block no:0x1f key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:8 block no:0x23 key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:9 block no:0x27 key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:10 block no:0x2b key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:11 block no:0x2f key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:12 block no:0x33 key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:13 block no:0x37 key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:14 block no:0x3b key type:B key count:13 Found valid key:[ffffffffffff] --SectorsCnt:15 block no:0x3f key type:B key count:13 Found valid key:[ffffffffffff] proxmark3>
