　　在上一篇文章中，我们通过一个徽章挑战，为读者详细介绍了如何转储Atmel芯片的固件，在本文中，我们将继续为读者演示如何转储更复杂的一个电路板：Belkin N300路由器。

　　接下来我们要转储的板子是Belkin N300路由器。当前，Belkin是更受欢迎的消费类路由器品牌之一，这意味着与之前的CTF徽章不同，这次的挑战提供了更多的真实场景。因此，在该设备中发现漏洞的话，则可能会影响到全球的家庭。

　　首先我们要做的就是再去尝试定位一个闪存芯片。这次我们确定的是一款MX25L1606E芯片（图11），相关的参数见

　　图11 mx25l1606e芯片

　　接下来，我们将使用Attify Badge（图12）来转储我们的固件，因为Bus Pirate已经“ *** ”了。

　　图12 Attify Badge

　　引脚输出如下所示：

　　图13 mx25l1606e示意图

　　MX25L1606E

　　Attify Badge

　　MOSI

　　GND

　　VCC

　　3.3V

　　SCLK

　　SCK

　　MOSI

　　完成上述操作后，它应该是这样的：

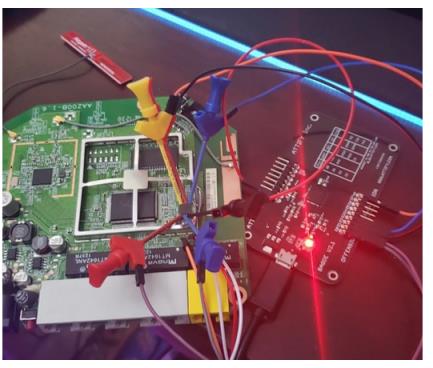

　　图14 mx25l1606E（已经连接Attify Badge）

　　由于闪存芯片周围有金属框，所以这块板子上使用SOIC夹的空间有限，因此，这次我们采用了鳄鱼夹。

　　现在，准备工作已经就绪了，下面我们继续转储这个固件。但是，这次我们将使用名为“flashrom”的实用程序，而不是avrdude，因为我们要处理的是闪存 SPI芯片，而不是Atmel芯片。

　　首先，我们可以使用下面的命令来确定flashrom是否可以转储我们的芯片：“flashrom -p ft2232_spi:type=232H”。

　　该命令将尝试自动识别我们的芯片。如果你使用的是Bus Pirate，可以用下面的参数代替传递给-p的参数：“flashrom -p buspirate_spi:dev=/dev/ttyUSB0”。

　　其中，/dev/ttyUSB0是Bus Pirate连接的串口，读者可以根据需要进行修改。运行该命令后，成功返回如下内容：

　　flashrom v0.9.9-r1954 on Linux 4.15.0-88-generic (x86_64)

　　flashrom is free software, get the source code at

　　Calibrating delay loop... delay loop is unreliable, trying to continue OK.

　　Found Macronix flash chip "MX25L1605A/MX25L1606E/MX25L1608E" (2048 kB, SPI) on ft2232_spi.

　　如果芯片识别失败也不要担心，可以用“flashrom -L”在列表中手动找到您的芯片，然后运行下面的命令，看看是否还能读取芯片：“flashrom -p ft2232_spi:type=232H -c MX25L1605A/MX25L1606E/MX25L1608E -r dump.bin”。

　　其中，-p选项表明我们要使用ft2232编程器（如果使用Bus Pirate，则用上面的-p参数进行相应的替换），-c选项表明我们要转储哪种闪存芯片（本例中是MX25L1606E），-r dump.bin告诉它将内容读入文件dump.bin。如果一切顺利的话，我们应该得到一个有效的固件文件。如果失败的话，则会报错，或者创建一个充满空字节的文件。

　　当然，这个过程可能需要一段时间，特别是对于较大的芯片；另外，我们可以从数据表中识别尺寸大小。由于MX25L1606E以地址1FFFFF结束，所以，其长度为2097151字节或2MB（图15）。

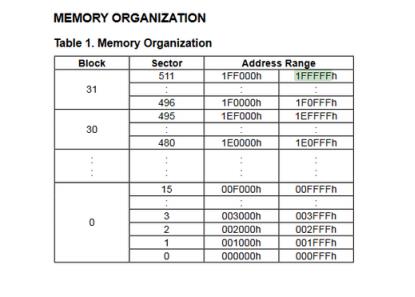

　　图15 mx25l1606e的存储器组织结构

　　这块2MB的芯片用了大约2分钟才完全转储过来。最后，我们很幸运，之一次就成功转储了固件。

　　iot@attifyos ~> flashrom -p ft2232_spi:type=232H -c MX25L1605A/MX25L1606E/MX25L1608E -r dump.bin

　　flashrom v0.9.9-r1954 on Linux 4.15.0-88-generic (x86_64)

　　flashrom is free software, get the source code at

　　Calibrating delay loop... delay loop is unreliable, trying to continue OK.

　　Found Macronix flash chip "MX25L1605A/MX25L1606E/MX25L1608E" (2048 kB, SPI) on ft2232_spi.

　　Reading flash... done.

　　这时，该binwalk上场了：

　　iot@attifyos ~> binwalk dump.bin

　　DECIMAL HEXADECIMAL DESCRIPTION

　　--------------------------------------------------------------------------------

　　5440 0x1540 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, uncompressed size: 85344 bytes

　　28570 0x6F9A Sercomm firmware signature, version control: 256, download control: 0, hardware ID: "AAZ", hardware version: 0x3200, firmware version: 0x6, starting code segment: 0x0, code size: 0x7310

　　142352 0x22C10 LZMA compressed data, properties: 0x5D, dictionary size: 8388608 bytes, uncompressed size: 2764800 bytes

　　881324 0xD72AC LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 3450 bytes

　　882534 0xD7766 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 10162 bytes

　　884943 0xD80CF LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 118270 bytes

　　917640 0xE0088 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 11937 bytes

　　920834 0xE0D02 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2992 bytes

　　921709 0xE106D LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 177 bytes

　　921863 0xE1107 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 116 bytes

　　921999 0xE118F LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 491 bytes

　　922337 0xE12E1 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 718 bytes

　　922610 0xE13F2 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 20267 bytes

　　926110 0xE219E LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 1196 bytes

　　926568 0xE2368 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 140 bytes

　　926729 0xE2409 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 708 bytes

　　927159 0xE25B7 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 17248 bytes

　　930471 0xE32A7 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 141 bytes

　　930632 0xE3348 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 543 bytes

　　930971 0xE349B LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 4166 bytes

　　932391 0xE3A27 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 5883 bytes

　　933996 0xE406C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 3257 bytes

　　935281 0xE4571 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 49 bytes

　　935337 0xE45A9 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 7205 bytes

　　936048 0xE4870 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 4716 bytes

　　937318 0xE4D66 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2506 bytes

　　937984 0xE5000 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 7376 bytes

　　938892 0xE538C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2951 bytes

　　939613 0xE565D LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 7369 bytes

　　940273 0xE58F1 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 11312 bytes

　　942619 0xE621B LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 7671 bytes

　　944755 0xE6A73 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 300 bytes

　　945073 0xE6BB1 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 99243 bytes

　　974918 0xEE046 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 89932 bytes

　　1006871 0xF5D17 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 55 bytes

　　1006939 0xF5D5B LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 1484 bytes

　　1007670 0xF6036 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 11316 bytes

　　1008768 0xF6480 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 6962 bytes

　　1010654 0xF6BDE LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2723 bytes

　　1011701 0xF6FF5 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 9151 bytes

　　1013994 0xF78EA LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 13151 bytes

　　1016828 0xF83FC LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 3592 bytes

　　1018079 0xF88DF LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 27452 bytes

　　1024437 0xFA1B5 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 711 bytes

　　1024870 0xFA366 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 71 bytes

　　1024953 0xFA3B9 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 3861 bytes

　　1026104 0xFA838 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 4303 bytes

　　1026844 0xFAB1C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 11222 bytes

　　1029155 0xFB423 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2189 bytes

　　1030156 0xFB80C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 15453 bytes

　　1031493 0xFBD45 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 11326 bytes

　　1032515 0xFC143 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 4244 bytes

　　1036593 0xFD131 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 15755 bytes

　　1040878 0xFE1EE LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2695 bytes

　　1042083 0xFE6A3 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 1956 bytes

　　1043986 0xFEE12 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 6532 bytes

　　1045769 0xFF509 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 868 bytes

　　1046218 0xFF6CA LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2208 bytes

　　1047043 0xFFA03 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 1010 bytes

　　1047474 0xFFBB2 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2793 bytes

　　1048685 0x10006D LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 1599 bytes

　　1049943 0x100557 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 49437 bytes

　　1055931 0x101CBB LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2276 bytes

　　1056907 0x10208B LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 9850 bytes

　　1059309 0x1029ED LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 14359 bytes

　　1062254 0x10356E LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 115629 bytes

　　1096126 0x10B9BE LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 142 bytes

　　1096289 0x10BA61 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2379 bytes

　　1097270 0x10BE36 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 9662 bytes

　　1099324 0x10C63C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 8110 bytes

　　1100452 0x10CAA4 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 16599 bytes

　　1104501 0x10DA75 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 113073 bytes

　　1139633 0x1163B1 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 1164 bytes

　　1140114 0x116592 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2749 bytes

　　1141269 0x116A15 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 992 bytes

　　1141593 0x116B59 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2386 bytes

　　1142645 0x116F75 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 3389 bytes

　　1143726 0x1173AE LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2593 bytes

　　1144845 0x11780D LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 112854 bytes

　　1178716 0x11FC5C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 23875 bytes

　　1182332 0x120A7C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 19256 bytes

　　1186345 0x121A29 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 22772 bytes

　　1189511 0x122687 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 19897 bytes

　　1193861 0x123785 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 5708 bytes

　　1195343 0x123D4F LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 118097 bytes

　　1230423 0x12C657 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2468 bytes

　　1231379 0x12CA13 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 122825 bytes

　　1264272 0x134A90 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 36 bytes

　　1264320 0x134AC0 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 3331 bytes

　　1265332 0x134EB4 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 114489 bytes

　　1299549 0x13D45D LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 6837 bytes

　　1301387 0x13DB8B LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 13110 bytes

　　1303991 0x13E5B7 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 119 bytes

　　1304130 0x13E642 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 3482 bytes

　　1305418 0x13EB4A LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2803 bytes

　　1306588 0x13EFDC LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 88006 bytes

　　1337278 0x1467BE LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 6572 bytes

　　1339658 0x14710A LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2384 bytes

　　1342047 0x147A5F LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 141 bytes

　　1342210 0x147B02 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 73 bytes

　　1342295 0x147B57 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 856 bytes

　　1343170 0x147EC2 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 625 bytes

　　1343809 0x148141 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 183 bytes

　　1343969 0x1481E1 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2619 bytes

　　1345099 0x14864B LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 3389 bytes

　　1346055 0x148A07 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 12586 bytes

　　1347838 0x1490FE LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 118 bytes

　　1347975 0x149187 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 650 bytes

　　1348652 0x14942C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2791 bytes

　　1349331 0x1496D3 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 615 bytes

　　1349749 0x149875 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 13284 bytes

　　1352395 0x14A2CB LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 4897 bytes

　　1353804 0x14A84C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 34279 bytes

　　1358905 0x14BC39 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 113 bytes

　　1359036 0x14BCBC LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 37989 bytes

　　1365372 0x14D57C LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2509 bytes

　　1366497 0x14D9E1 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 2175 bytes

　　1367477 0x14DDB5 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 7597 bytes

　　1369498 0x14E59A LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 5214 bytes

　　1371175 0x14EC27 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 43 bytes

　　1371229 0x14EC5D LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 114 bytes

　　1371363 0x14ECE3 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 290 bytes

　　1371584 0x14EDC0 LZMA compressed data, properties: 0x5D, dictionary size: 65536 bytes, uncompressed size: 929 bytes

　　从“Sercomm Firmware Signature”这一行，我们可以看到一个硬件的ID为“AAZ”，它与电路板上的硬件ID完全匹配（图16）。现在，我们就可以继续分析这个固件的漏洞了。请记住，如果我们可以转储固件，我们也可以将自定义固件和后门写入闪存芯片。

　　图16 硬件标识

　　如果期间出错的话，最可能的两个原因是引脚没有正确连接，或者（如果引脚已经正确连接）它们正在给SPI芯片供电，使得芯片无法进行转储。第二种情况可能很常见，一般来说，更好的解决 *** 是用热*对芯片进行脱焊，然后用芯片自行转储固件。如前所述，更好检查一下电缆的长度，以确保故障不是由于电缆太长造成的。

　　虽然转储这些设备可能需要不少时间，但这可以帮助我们加深对这些设备的工作原理的了解。例如，通过转储Belkin设备的固件，我们可以直接分析源web文件，从而使我们可以更容易识别设备内的远程漏洞并加以利用。

　　通过利用这些类型的设备的安全漏洞，攻击者可以在受害者的路由器内创建一个后门，并重新路由所有 *** 流量，窃取受害者的银行和电子商务账户等账户的凭证。了解这些漏洞存在的地方，让我们有机会在它们造成任何重大损害之前修复它们。

　　在本系列的下一部分，我们将讨论JTAG和UART串行接口，如何访问它们，以及我们可以从中得到什么。

　　我们可以借助一些工具来成功地转储这些固件，例如：

　　SOIC Clip:

　　A device for dumping firmware (Bus Pirate):

　　Cables and clips:

　　Additional useful wires:

　　Bus Pirate用于与SPI串行协议进行交互，以便为我们转储固件。其他可行的替代方案包括Shikra（和Attify Badge（当然，每个工具都有自己的优缺点。但是，Bus Pirate以及被广泛使用，并且有很好的文档，在我看来，它是最容易使用的。但是，Shikra被认为比Bus Pirate更稳定，速度更快，但没有那么多的支持。相比之下，Attify Badge则更易于设置，但同样支持有限。此外，Bus Pirate还提供了一个很好的串行接口，如果你愿意的话，可以很轻松与设备进行手动通信。读者可以根据自己的喜好和条件进行选择。

　　此外，由于电缆和夹子相当便宜，并且容易买到，因此，我特别推荐这些，因为它们已经为我提供了我迄今为止所需的一切，并且可以很好地夹在针脚上。
